¶ 🧭 OLT Manager Index
The OLT Manager Index page is responsible for registering and managing the servers used to communicate with specific OLT manufacturers through external management platforms, such as:
- UNM (FiberHome)
- U2000 (Huawei)
- AMS (Nokia)
- Other compatible management platforms
These managers are used to enable integrations, command execution, queries, and automated operations related to the OLTs registered in the Portal.
¶ 🔐 Required Permissions
To access the OLT Managers page, the user must have permissions related to PON infrastructure and OLT management.
| Permission | Description |
|---|---|
| OLT Managers (Read) | Allows viewing registered OLT managers |
| OLT Managers (Write) | Allows creating and editing OLT managers |
¶ 📋 Table Information

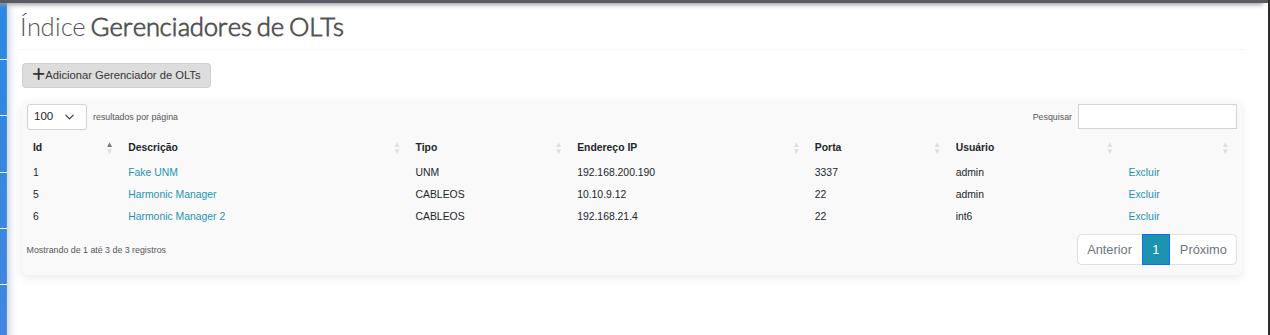

The main screen displays all managers registered in the system.
| Field | Description |
|---|---|
| ID | Internal identifier of the manager |
| Description | Descriptive name of the manager |
| Type | Type of the registered manager |
| IP Address | IP address of the manager server |
| Port | Port used for communication |
| User | User configured for authentication |
| Delete | Removes the manager registration |
¶ ➕ Add OLT Manager
To register a new manager, click the button:
+ Add OLT Manager

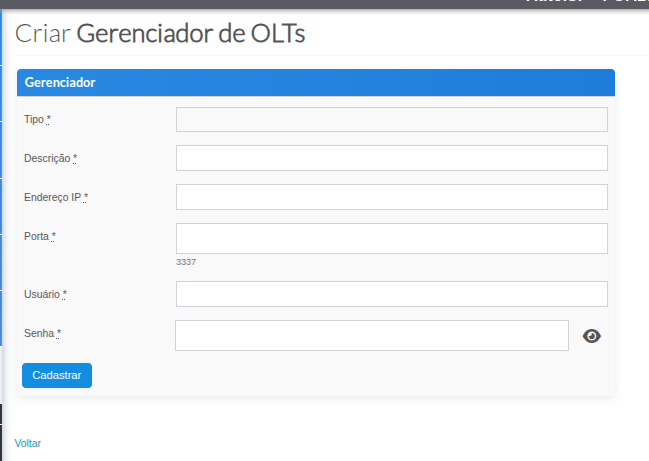

After clicking, the manager registration screen will be displayed.
¶ ⚙️ Registration Fields
| Field | Description |
|---|---|
| Type | Manager type (UNM, CABELOS, etc.) |
| Description | Identification name of the manager |
| IP Address | IP address of the manager server |
| Port | Communication port used |
| User | Authentication user |
| Password | Password used for authentication |
¶ 🧠 Usage Examples
Managers can be used in different integration scenarios:
| Manager | Purpose |
|---|---|
| UNM | Communication with FiberHome equipment |
| AMS | Integration with Nokia environments |
| U2000 | Management of Huawei OLTs |
¶ ⚠️ Important Notes
⚠️ Network connectivity must be available between the Portal and the configured manager server.
⚠️ The registered credentials must have the appropriate permissions to perform the required operations in the manufacturer's environment.
⚠️ Incorrect IP address, port, or authentication settings may prevent communication with the associated OLTs.
¶ ✅ Expected Result
After the manager is correctly registered:
- The system will be able to establish communication with the manufacturer's management platform
- Associated OLTs will be able to perform automated operations
- Queries and provisioning processes will be able to use the configured manager
