¶ 🌐 VLAN Profile on the OLT
The VLAN Profile tab within the OLT is used to define which VLANs will be applied during the provisioning process of devices (ONUs/ONTs).
¶ 🧭 Overview
On this screen, you can create VLAN profiles that will be automatically applied during provisioning, ensuring standardization and greater efficiency during activations.
¶ ⚙️ Configuration Options
The system supports different VLAN configuration methods:
-
🌍 Default VLAN (Global)
Created without specifying Slot/PON and applied as the default configuration for the entire OLT. -
🎯 VLAN by Slot/PON
Allows specific VLANs to be defined for each OLT port, supporting more segmented network scenarios. -
🤝 VLAN by Partner (Neutral Network)
Allows specific VLANs to be associated with neutral network partners, ensuring proper isolation and organization.

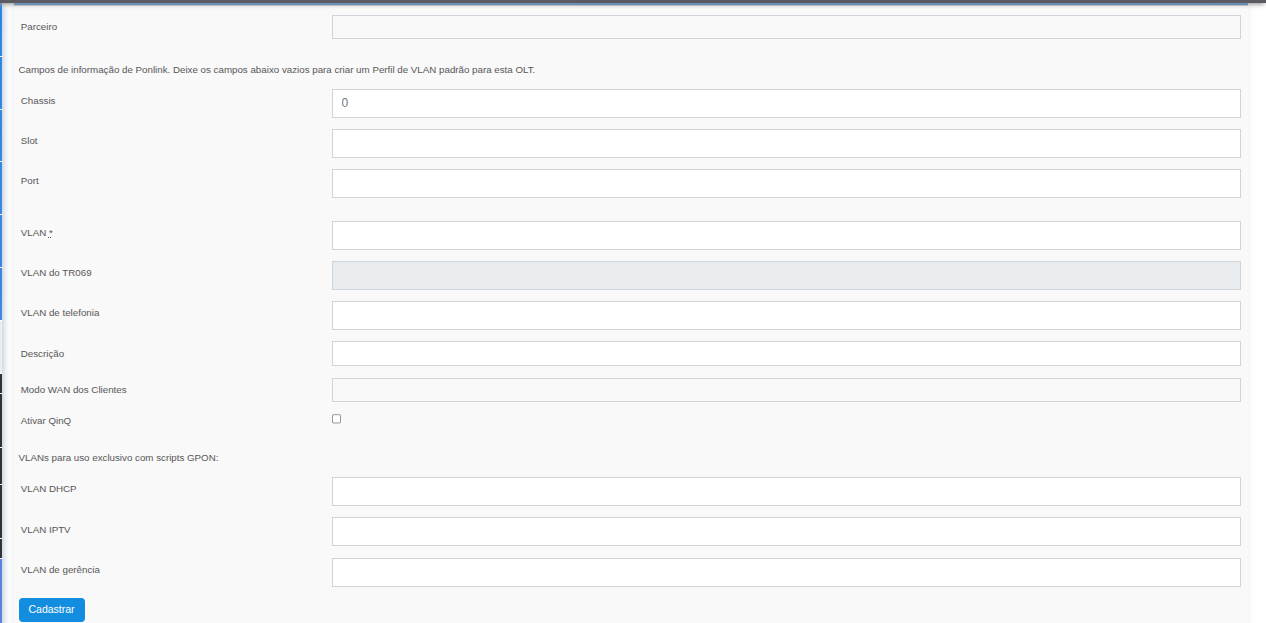

¶ 🧾 Available Fields
| Field | Description |
|---|---|
| Chassis / Slot / Port | Defines the VLAN scope within the OLT |
| VLAN | Main VLAN used during provisioning |
| TR069 VLAN | VLAN used for communication with the ACS |
| Voice VLAN | VLAN assigned to voice services |
| Client WAN Mode | Defines the connection type (PPPoE, IPoE, etc.) |
| Enable QinQ | Enables VLAN encapsulation (802.1ad) |
| DHCP VLAN | VLAN used for IP address distribution |
| IPTV VLAN | VLAN dedicated to TV services |
| Management VLAN | VLAN used for device management |
| Description | Identifies the created profile |
¶ 🧪 VLANs for Use with PON Scripts
In addition to the standard VLANs, specific VLANs can also be defined exclusively for use with PON Scripts, allowing advanced customization of automated provisioning.

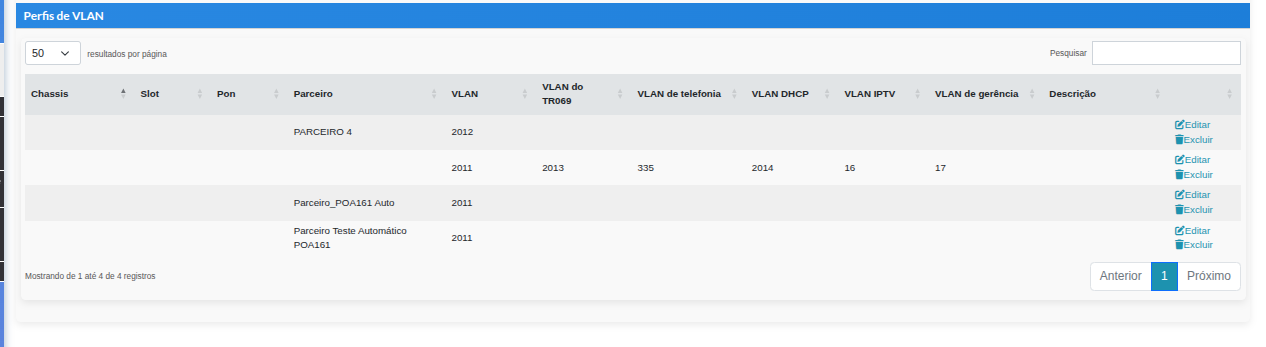

¶ 📋 Registered Profile List
At the bottom of the screen, all registered VLAN profiles are listed with the following information:
- Identification by Chassis / Slot / PON
- Partner association
- Configured VLANs (data, TR069, voice, DHCP, IPTV, management)
- Description
- Available actions:
- ✏️ Edit
- 🗑️ Delete
¶ ✅ Best Practices
- Always verify that the configured VLAN matches the OLT configuration
- Avoid duplicate VLAN configurations for the same scenario
- Use clear descriptions to make profiles easier to identify
- In neutral network scenarios, ensure proper segregation by partner
- Validate compatibility with PON scripts before applying the configuration
¶ 🎯 Expected Result
With VLAN profiles properly configured:
- ✔️ Provisioning is performed automatically and consistently
- ✔️ Reduced operational errors
- ✔️ Better organization by scenario (OLT, port, partner)
- ✔️ Easier maintenance and troubleshooting
